| Item Number | 81226 | 81227 | 81228 |
|---|---|---|---|
| Model | CSP1 | CSP2 | CSP3 |
| Diameter(mm) | Φ11 | Φ13 | Φ15 |
Fiberglass Duct Rodder and Accessories
Uses
Suitable for tube optical cable installation in power communication industry.
Component
Fiberglass duct rodder is composed of rodder and small wheel. There are nylon guide tip and nylon shackle for fiberglass duct rodder with terminal end threaded 12mm. The standard length of roller guide tip is 100m.
Feature
Rodder adopt FRP molding core material. The external cover with special engineering plastics. Smooth and high-strength.
Note
Can be customized on other specifications.

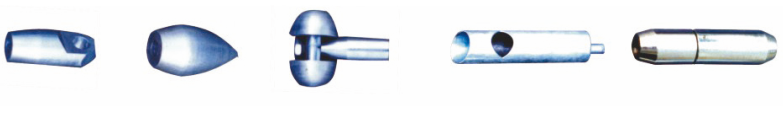

| Item number | Spec | Feature | Uses |
|---|---|---|---|
| 81229 | ZT25 Cone-shaped guide tip | Cone-shaped tip Φ25 | Guide rodder through duct, the tip of model Z25 with hole, apply to pullback connect pulling rope. |
| 81230 | ZT40 Cone-shaped guide tip | Cone-shaped tip Φ40 | |
| 81231 | DXL60 guide roller | Circumcircle Φ60 | Guide rodder through swerve and level end of duct. |
| 81232 | NC100 mud basket | Close valve Φ60 | To clean mud and other small things. |
| 81233 | XZM12N swivel joint | Out diameter Φ25 | Connect the rodder. |
